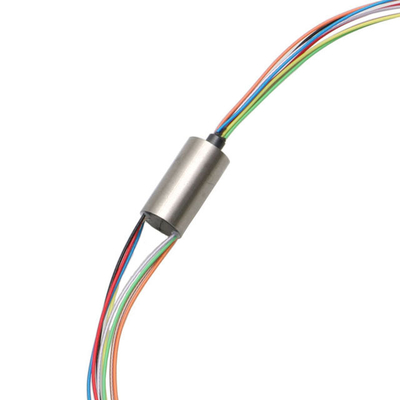

RC UAV Fish Anchor Brushless Motor Spinning Slip Ring Diameter 6mm Diameter 6mm 8CH 1A Circuits 1A Mini Conductive Slipring Rotary Joint

1 piece
MOQ
RC UAV Fish Anchor Brushless Motor Spinning Slip Ring Diameter 6mm Diameter 6mm 8CH 1A Circuits 1A Mini Conductive Slipring Rotary Joint
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Model Number: Dia 6mm 8CH 1A
Type: Slipring
Product name: Slipring
Outer diameter: 6mm
Length: 11.8mm
Channels: 8CH
Rated current: 1A
Rated voltage: 0~240VAC/DC
Rotation speed: 300RPM
Shell materia: metal
Working temperature: -20℃~80℃
기본 정보
Model Number: Dia 6mm 8CH 1A
결제 및 배송 조건
제품 설명
Product Description
item
value
Place of Origin
China
Guangdong
Brand Name
Shuaichi
Model Number
Dia 6mm 8CH 1A
Type
Slipring
Product name
Slipring
Outer diameter
6mm
Length
11.8mm
Channels
8CH
Rated current
1A
Rated voltage
0~240VAC/DC
Rotation speed
300RPM
Shell materia
metal
Working temperature
-20℃~80℃

RC UAV Anchor-fish Brushless Motor Rotating Slipring Diameter 6mm 8 Circuits 1A Mini Conductive Slipring Rotary Joint


Specification: - Outer diameter: 6mm - Length: 11.8mm - Channels: 8CH - Rated current: 1A - Rated voltage: 0~240VAC/DC - Rotation speed: 300RPM - Working temperature: -20℃~80℃ - Contact material: Precious metal - Wire specification: AWG28 - Wire length: standard 250mm - Shell material: metal - Protection level: IP51 - Insulator strength: 500VAC@50Hz, 60second - Insulation Resistance: ≥500MQ/500VDC - Dynamic resistance fluctuation value:＜0.01Q Note: size is manual measurement, there are exist errors Package include: 1pcs x slipring
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Western Europe(42.00%),North America(28.00%),Domestic Market(10.00%),Northern Europe(6.00%),Southern Europe(6.00%),Eastern Asia(5.00%),South Asia(3.00%). There are total about null people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
slip ring
