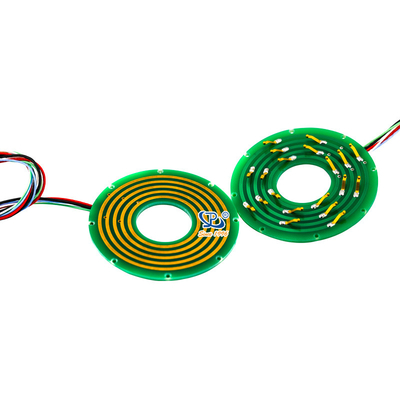

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.
Features
Advantages
|
Circuits |
4circuits * 10A 9circuits * signal
|
Working Speed |
0~50rpm |
|
Working Voltage |
380VDC/AC |
Contact |
Gold to gold |
|
Dielectric Strength
|
≥1000V@50Hz(Current) ≥500V@50Hz(signal) |
Housing |
Oxidation black of aluminum alloy |
|
Insulation |
500MΩ@500VDC(Current) 100MΩ@300VDC(signal) |
Wire Length |
Stator Wire:700mm Rotor Wire: 700mm |
|
Environment |
Remarks |
||
|
Temperature |
-20°C~+60°C |
Installation Method
|
Stator is fixed on the spindle provided by customer
|
|
Humidity |
≤60%RH |
||
|
IP |
IP54 |
||
Main Application
